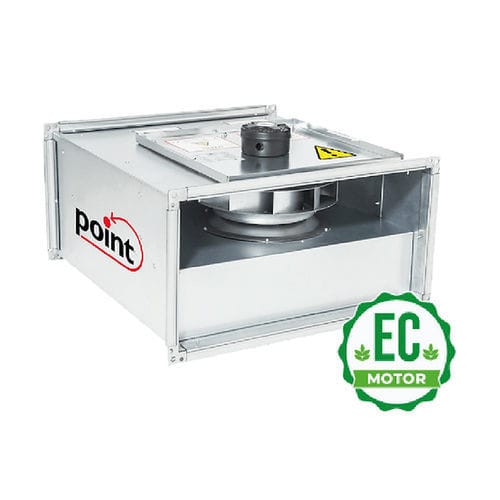

Duct fan KF-EC seriesIP44radialventilation
Add to favorites
Compare this product
Characteristics
- Type
- duct, IP44
- Configuration
- radial
- Function
- ventilation
- Supply voltage
- 230VAC
- Drive mechanism
- EC motor
- Other characteristics
- backward curved
- Air flow
Max.: 11,190 m³/h
(395,171.121 ft³/h)Min.: 565 m³/h
(19,952.787 ft³/h)- Rotational speed
Max.: 3,300 rpm
(20,735 rad.min-1)Min.: 1,470 rpm
(9,236 rad.min-1)- Noise level
Max.: 66 dB
Min.: 43 dB
Description
• Thermal protection for all self-motorized devices
• High efficiency
• Low noise level
• Low energy consumption
• *IP44 motor protection class
• Min/Max Ambient temperature -25/60°C
• Backward curved radial wings
• Reduced turbulence
• High Pressure
• Easy installation and assembly
