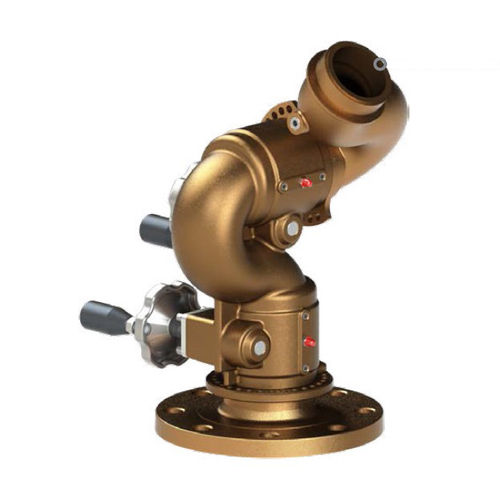

Manual fire nozzle
Add to favorites
Compare this product
Characteristics
- Control
- manual
- Flow rate
2,000 l/min
(528 us gal/min)
Description
Our fixed monitor nozzle DN65 in bronze is made to be used in a marine environment and
is PN16.
The flow rate can go up to 2,000 lpm at 7 bar at the monitor's outlet.
Elevation range is from -50° to +90°, horizontal range 360° by handwheels.
It can be equipped with different outlet equipment or couplings.
Maximum working pressure: PN16
Material: bronze
Horizontal movement: on 360°
Horizontal adjustment: by handwheel
Vertical movement: from -50° to +90°
Vertical adjustment: by
handwheel
