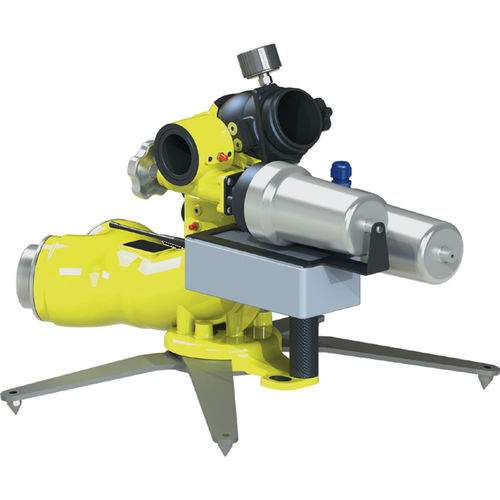

Automatic fire nozzle Montmirail DC

foamportable

This monitor "Montmirail" DC, entirely made of aluminium alloy, is the result of the latest developped generation of our R&D department. With its low weight (less than 16kg), this monitor is the lightest on the market. The user may easily transport the monitor thanks to its carrying handle and its compact volume. Four stabilising legs with spring loaded spikes for soft ground, and a mooring strap, ensure good stability for operating at the maximum flow rate. Combined with several outlet accessories (diffuser, self-educing diffuser, water branchpipe, water-foam branchpipe) this monitor nozzle allows a flow rate up to 4,000 lpm at 7 bar at the monitor's outlet. Moreover, the monitor and all accessories are all PN16, so it can support innoportune high pressure due to manipulation mistakes. Completely electrified (POK EasyDrive© Compatible) and equipped with high performance motors, it can be controlled by the most efficient radio or wire remote controlled system in the market, allowing extremely fast, precise and progressive movements. The remote control allows to adjust the horizontal position from -170º to 170º and the elevation from 25º to 85º. Several outlet equipment work with the maximum flow rate of 4,000 lpm at 7 bar at the monitor outlet. Emergency wheels (horizontal and vertical travel) allow the monitor to operate even without electrical supply. You may define the angle of vertical and horizontal travel by means of mechanical stops.
