Ball valve Quadripokmanualflow controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- flow control
- Media
- for water
- Body
- threaded, aluminum
- Number of channels
- 4-way
- Associated function
- outlet
- DN
150 mm
(5.906 in)
Description

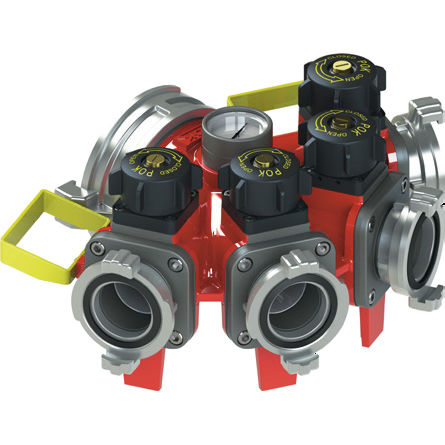

Our divider "Quadripok" has four outlets equipped with ball valve shutoffs.
It allows to split one supply into several outlets. There is almost no pressure loss thanks
to its full waterway. It is equipped with stabilising feet and a pressure gauge.
It is delivered with a transport trolley which allows one to move without any effort. A
large number of in and outlet connections can be provided: threaded BSP or NST-NH,
or standardised couplings.
Maximum working pressure: PN16
Valve type: ball valve
Operation: by handwheel
Material: aluminium alloy
Coating: polyester coating
Body type: moulded
Pressure gauge: YES
