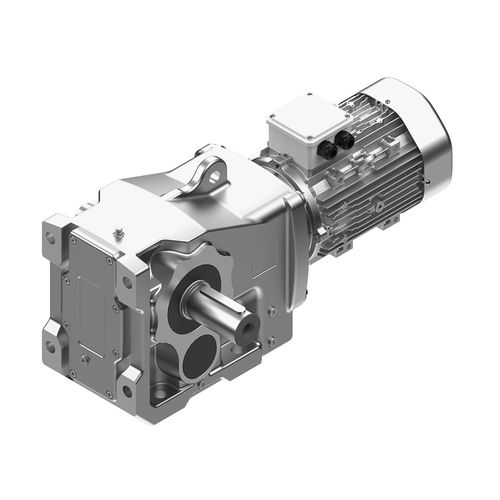

Bevel gearbox PKD series

helical10 - 20 Nm200 - 500 Nm

It may be the drive solution in various conveyors used for heavy load transfer where movement is to be directed at 90°. Helical bevel gear units with 90° input and output axis range. Casing with feet, flange F options. A rigid structure in case. System resistance calculations are made in accordance with ISO, DIN and NIEMANN standards. Different input options may be provided (Coupled motor, IEC, PAM, W, Servo motor connected, ...). Different output options available (Solid shaft, Hollow shaft, With shrink disc, ...). Different mounting accessories available (B5 flange, B14 flange, Torque arm and Platforms,...). Bodies are manufactured from sfero (GGG 40-50) and peak (GG 20-25). Gears are made of cast and 21NiCrMo2 case-hardening steel. High-quality bearing and sealing components are used. Special requests of the customers may be considered.
