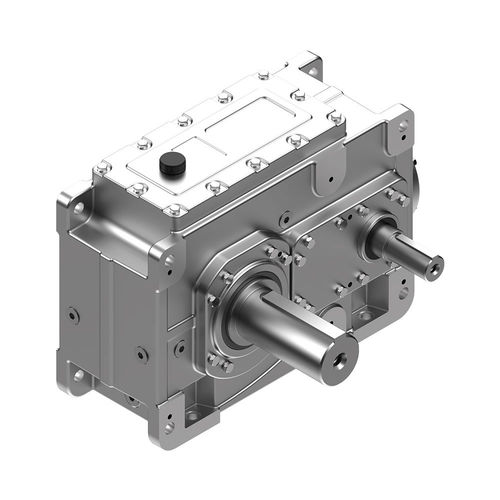

Bevel gearbox PH/PB series

helical gear2 - 5 kNm5 - 10 kNm

Industrial type gear units operate especially under heavy working conditions, have rigid case, bear high moments up to 480000 Nm and stand out with silent operation and easy maintenance features. Helical - bevel gear units with parallel axis input and output or 90° axis angle. Casing with feet, flange F options. A rigid structure in case. Gear units used to meet needs for high power under heavy working conditions. System resistance calculations are made in accordance with ISO, DIN and NIEMANN standards. Different input options available (IEC, W, ...). Different output options available (Solid shaft, Hollow shaft, With shrink disc, ...). Different mounting options available ( B5 flange, Torque arm platform,...). Cases are manufactured from sfero (GGG 40-50) and peak (GG 20-25). Gears are made of cast and 21NiCrMo2 case-hardening steel. High-quality bearing and sealing components are used. Special requests of the customers may be considered.
