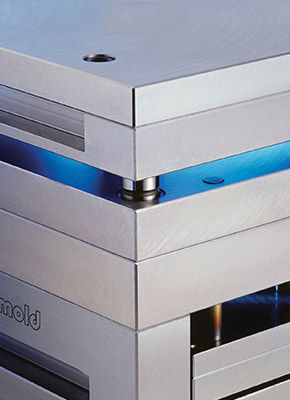

Injection molding mold base

The Mold Base with 2 plates has 2 cavity plates that allow more than 680.000 combinations in 53 different sizes, from 156x156mm to 696x996mm and with thickness from 22 to 196mm. On these specifications, the Mold Base with 2 plates is recommended to standard applications in plastic injection, with the security and quality assured by Polimold. Plate’s Finishing Every plate of the Standard Polimold Mold Base is finished by rotary ground machin finished byY rotary ground machine process (thickness tolerance of +0,15mm/ +0,30mm). According to each project, there is also the option to have all plates finished by tangential grinding (thickness tolerance of +0,05mm/ +0,15mm). Supply Conditions The molds of the series over 50-80 can be supplied with the guide pin diameter (D2) 60,00mm or 70,00mm, since the assembly coordinates are informed. On the Polimolds over 50.50 the ejector set can be optionally provided with 6 guides, since the coordinates are informed. The cavity plates with thickness equal or superior to 156mm has hole adjusts and components of 2/3 of their height. The Polimolds with size between 15.15 and 20.20 can be provided with 4 columns on the ejector set, since the coordinates are sent by the client. On assemblies 4,5 and 6 the return pins are included on the package. The new Polimolds are supplied with a smaller diameter column on the edge replacing the offset guide pin. Bolt Holes The BOLTS are necessary to plates over 120kg/ or area over 500 x 500mm. They are centered on the thickness of the plate, except when the dimension “Z” is informed. On the 3 and 4 types it is required to inform the “A” measure.
