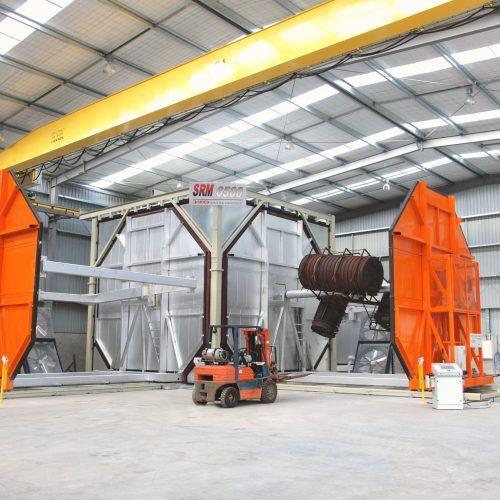

Shuttle roto-molding machine SRM

with independent arms

Shuttle SRM rotational molding machines have high loading capacity, for the production of large items, made with a central oven and with the possibility of having up to four multipurpose zones for cooling and loading/unloading. This machine is an ideal choice for large volume part production with different cycle times. Features – Configuration from 1 to 4 arms completely independent from each other; – Maximum spherical diameter moldable from mm. 2,000 to mm. 7,500; – No production stops for arms in maintenance or mold change; – Exclusive design of the cart that compartmentalize the oven without the use of doors; – Reduced installation area: linear or angle layout for configurations up to 2 arms; – Arms supported at two points for maximum load capacity; – Straight, offset and C-shaped mold-holder arms, fully interchangeable, with 1, 2, 3, or 4 airways; – High insulation of the oven with preformed panels; – Electronic modular burner; – Cooling with high-performance fans; – Operator interface with touch-screen; – Perimeter consoles for arm movement management; – Safety barriers and protections according to standards. Additional info The duration of each stage of the molding cycle of each cart is independent of that of the others, guaranteeing the highest quality of rotational products. Repeated molding of the same rotational product can also be done without involving the other carts that may be in maintenance or engaged in mold replacement. The production recipe of each rotational product is stored by the machine for future use.
