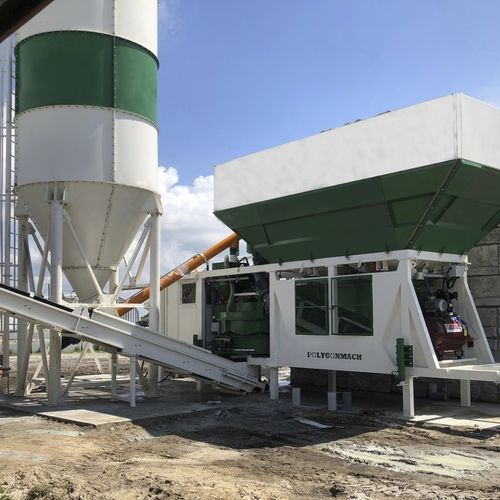

Mobile concrete batching plant PAC 30

Site type concrete batching plants has been issued for easy installation and easy legal procedures. Site batching plants consist of aggregate hoppers, from 2 to 8 pcs differant aggregate can be used such application, belt onveyor or skip hoist to transfer material from hoppers to mixer, mixing section, pan,planetery,twin shaft, single shaft or cone mixer, weighing section. Site type concrete batcing plant is for very fast location changer customers. After once installation you will never ned to disassembly iy again due to 4.5 full operation height. With 0,5 and 0,75m3 single shaft and planetery mixer; Polygonmach site plants are best for small scale operations and all type of concrete you need. Site type plant a kind of mobile type plant however it has got shipment price advantages, all site type plant set consist of concrete transfer belt conveyor, cement silo can go with single container around the world. With axles, towing hook make it easy to trasnport in hours. Portable batching plants,concrete plants, mixers are used to prepare precious dosed material by pneumatic cylinders and clamshell outlets, afterwards the material is weighed by weighing bin under hoppers. The material has been consisted of sand and aggregate(0-4mm, 4-8mm, 8-16mm, 16-32mm or similar). For excise material transfer procedure, belt conveyor. The sand and aggregate is waited before discharge to mixer. Additonally, there is weighing bin at top of mixer which consist of cement weighing scale/hopper, water hopper, liqued addtive hoppers. After sand and gravel discharged into mixer, cement, water,additive, sand and gravel is mixed on recipe based the mixing time chnages as per recipes.
