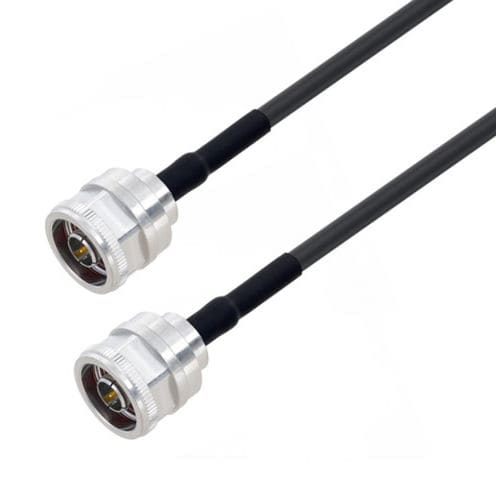

Coaxial electrical cable assembly CA195LL series

RF

PolyPhaser low density, low PIM cables feature a maximum PIM level of -160 dBc, operate up to 6 GHz and have maximum VSWR of 1.25:1 and 1.35:1 The PIM levels of each cable have been fully tested with the results clearly marked on each cable. Designed for multiple RF systems including multi-carrier communication systems, indoor wireless networks, DAS and PIM testing applications, these low PIM cable assemblies come in standard and customer lengths and multiple connector configurations. Features: • Low PIM assembly <-160dBc • 100% tested with PIM test results marked on cable • Max VSWR of 1.25:1 and 1.35:1 up to 6 GHz • Multiple connector options including 4.3-10, 7/16 DIN, Type N, 4.1-9.5 mini-DIN, QMA and SMA • Lightweight and extremely flexible plenum rated coax • All cable assemblies are in-stock for same-day shipping
