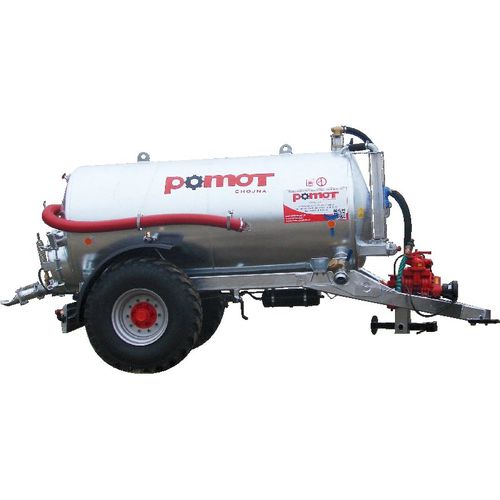

Transporting tank T507/6

sludgegalvanizedself-supporting

The slurry tank type T 507 / 6 at capacity 5000 liters is a completely equipped machine ready to work. It doesn’t need any additional equipment to work. The vehicle is available in four versions: MINIMUM, STANDARD, CLASSIC and PREMIUM. MINIMUM version has a compressor at capacity 3000 L / min, and a pouring spoon with the splash plate. It has no suction hose 6m. STANDARD version is the implementation of the standard described below. CLASSIC version has larger tires in relation to the STANDARD version and an additional latch side to fill the vehicle. PREMIUM version has larger tires than STANDARD and an additional latch side to fill the tank, oil tank 5 L, a triangular and pto Specifications and standard equipment: The tank is made of 5mm thick sheet with additional reinforcements Construction of the slurry tank: Self-supporting construction of the vehicle - towing bar attached to the reinforced supports in the tank. Frame construction - tank mounted on a frame made from section closed Tank hot dip galvanized inside and outside. Painted towing bar or the frame. Wheelset single axle, two wheels 15.0/55 x 17 Compressor with a capacity of 5000 ltr. / min. (flowability of air) The double-ball valve protect for overflowing the compressor. Siphon ø60 the clarifier and drain tap. Oil catcher / silencer.
