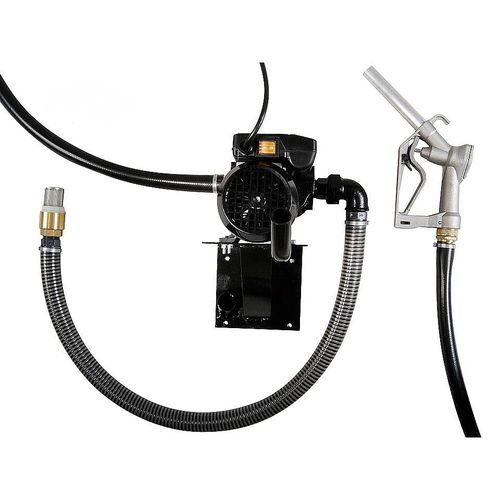

Vane pump JEV seriesfuel oilfor dieselelectric
Add to favorites
Compare this product
Characteristics
- Technology
- vane
- Fluid
- fuel oil, for diesel
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- agriculture
- Applications
- transfer, discharge, distribution, suction
- Voltage
- 230 V
- Other characteristics
- suction, automatic, built-in, filter
- Flow
3.4 m³/h
(120.06987 ft³/h)- Pressure
1.5 bar
(21.756 psi)- Head
Max.: 15 m
(49'02" )Min.: 0 m
(0'00" )- Power
0.37 kW
(0.5 hp)- Weight
13 kg, 13.5 kg, 15 kg, 15.5 kg
(28.66 lb, 29.76 lb, 33.07 lb, 34.17 lb)
Description
Complete delivery device
Descriptive
Technical data:
Pump with angle bracket
At discharge: 4 metres of hose with manual or automatic delivery gun
At suction: foot valve - fittings - hose Ø 32 - length to be defined, ref. 1414
Current: 2.2
Suction and discharge Ø: 1"
Built-in bypass
Filter: built into the pump
Maximum suction lift: 5 metres
Specifications and advantages:
Complete dispensing device
Characteristics
More Information
Fluid - Diesel
Technology - Piston, Vane
ATEX - No
Pump - Equipped
Pump sets - kits or transferring units
Orifice - 1"
Suction - Foot valve - fittings - pipe Ø 32 - length to be defined, ref. 1414
