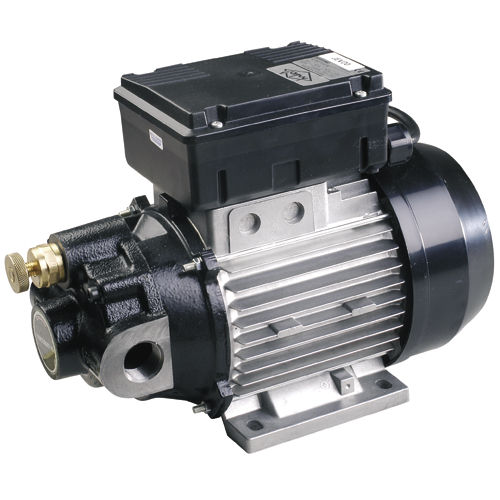

Oil pump JEV20for dieselelectricself-priming
Add to favorites
Compare this product
Characteristics
- Fluid
- oil, for diesel
- Operation
- electric
- Priming
- self-priming
- Technology
- vane
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer, discharge
- Other characteristics
- suction, adjustable, built-in
- Flow
1.5 m³/h, 3 m³/h
(52.972 ft³/h, 105.944 ft³/h)- Head
Min.: 0 m
(0'00" )Max.: 60 m
(196'10" )- Power
0.75 kW, 1.6 kW
(1.02 hp, 2.18 hp)- Fluid temperature
Min.: -10 °C
(14 °F)Max.: 60 °C
(140 °F)
Description
Vane pumps
Descriptive
Technical data:
Max. viscosity: 500 cSt (mm2/s)
Rotation speed: 1400 rpm
Current: 4.6 (JEV20), 7.8 (JEV22)
Suction and discharge Ø: 1"
Built-in and adjustable bypass
Transfer: 10 to 500 mm2/s
Positioning: horizontal or vertical
Specifications and advantages:
Vane pump
Characteristics
More Information
Fluid - Diesel, Oil
Technology - Vane
ATEX - No
Pump - Bare
Orifice - 1"
Materials - Cast-iron
Mechanism - Delrin
