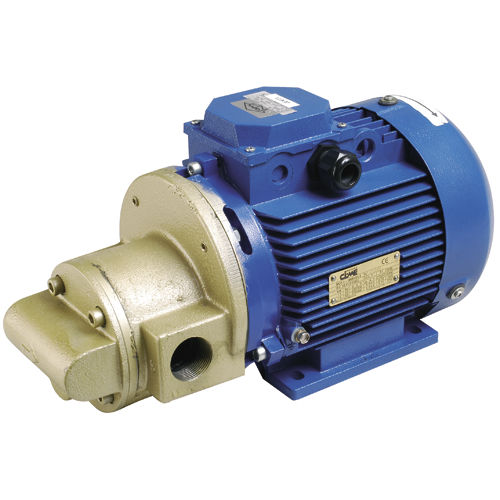

Oil pump JEV91for dieselelectricself-priming
Add to favorites
Compare this product
Characteristics
- Fluid
- oil, for diesel
- Operation
- electric
- Priming
- self-priming
- Technology
- gear
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer, filling
- Material
- steel
- Fluid specification
- for viscous fluids
- Voltage
- 400 V
- Other characteristics
- suction
- Flow
5 m³/h
(176.57333 ft³/h)- Head
Max.: 100 m
(328'01" )Min.: 0 m
(0'00" )- Power
3 kW
(4.08 hp)- Fluid temperature
90 °C
(194 °F)
Description
Self-priming displacement pump
Descriptive
Technical data:
Rotation speed: 1400 rpm
Current: 7.1
Orifice Ø: 1"1/4
Self-priming displacement pumps for: the transfer of diesel (JEV30 à JEV91), fluid oil (JEV40 / JEV41 / JEV50 / JEV51 / JEV71 / JEV81 / JEV91), viscous oil (JEV41 / JEV51 / JEV71 / JEV81 / JEV91)
Motor: 50Hz - protection IP55
Maximum suction lift: 4.5 metres
Specifications and advantages:
Self-priming displacement pump
Characteristics
Fluid - Diesel, Oil
Technology - Gear
ATEX - No
Pump - Bare
Orifice - 1"1/4
Materials - Cast-iron
Mechanism - Steel
