Water pump F-JEV serieselectricsemi-submersiblediaphragm
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Priming
- semi-submersible
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer, discharge, process, drum, suction, IBC
- Material
- stainless steel
- Fluid specification
- for AdBlue
- Voltage
- 24 V, 12 V, 230 V
- Protection level
- ATEX
- Other characteristics
- suction, filter
- Flow
2 m³/h
(70.62933 ft³/h)- Head
Max.: 15 m
(49'02" )Min.: 0 m
(0'00" )- Power
0.26 kW, 0.31 kW, 0.4 kW
(0.35 hp, 0.42 hp, 0.54 hp)
Description

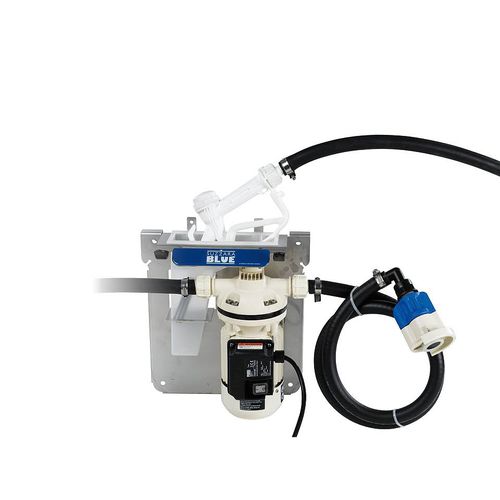

Electric pumps for AdBlue
Descriptive
Technical data
Designed for transferring AdBlue or water
Working cycle: 20 min
Plate: stainless steel support
Gun holder
Suction kit: 1.5 metres of hose with quick connector for AdBlue IBC
Discharge kit: 6 metres of hose with a manual delivery gun (automatic as an option)
Meter and filter: optional
Pipe: rigid suction pipe with optional quick connector (ref. 5606)
Rotation speed: 2800 rpm (F-JEV112-ADBLUE, F-JEV124-ADBLUE), 1450 rpm (F-JEV100-ADBLUE)
Current: 22 (F-JEV112-ADBLUE), 13 (F-JEV124-ADBLUE), 2 (F-JEV100-ADBLUE)
Max. TDH: 15 metres
Specifications and advantages:
Electric pump for AdBlue
Characteristics
Fluid - Adblue, Water with low solids contect
Technology - Membrane
ATEX - No
Pump - Equipped
Pump sets - kits or transferring units
Orifice - 3/4’’ + Ø 20
Materials - Stainless steel
Suction - 1.5 metres of pipe with quick connect fitting for AdBlue IBC
