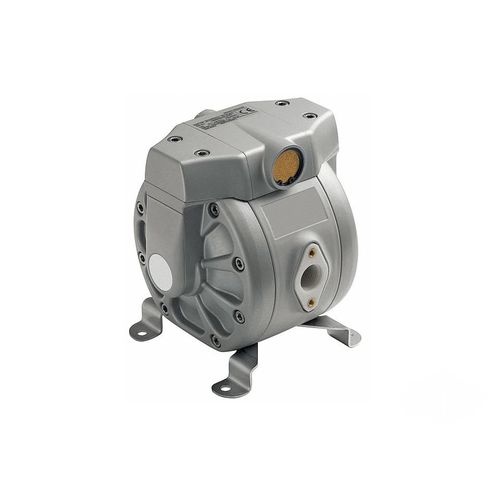

Diaphragm pump PP1/2SAN

waterfor chemicalspneumatic

Pneumatic membrane pump, PP body Descriptive Specifications and advantages Specially designed to transfer aggressive and/or viscous chemical liquids. Plastic pumps have to be used for the pumping and transferring of strong acids or bases. These pumps are self-priming when used for dry running. The priming height varies depending on the humidity of the pump. The flow rate can be set by adjusting the pressure and flow rate of intake air. Dry running is possible for this pump: it will continue to run without overheating or wear. The pump has a special safety mechanism: automatic shutdown if the delivery of liquid is stopped. Characteristics Fluid - Acid, Adblue, Water Technology - Membrane ATEX - No Pump - Bare Orifice - 1/2’’ Materials - Polypropylene Balls - PTFE Sockets - PP Other contact parts - Stainless steel, EPDM Max. viscosity - 5000 cPo Dry membrane - 6 m Wet membrane - 8 m Air consumption - from 3 to 22 Nm3/h Membrane - Santoprene® Particles - 3mm
