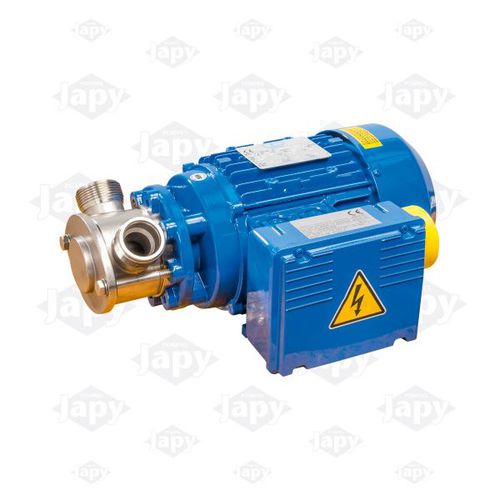

Water pump JEP seriesfor chemicalsoilfor diesel
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for chemicals, oil, for diesel
- Operation
- electric
- Technology
- impeller
- Mobility
- stationary
- Domain
- industrial, chemical, for pharmaceutical applications
- Applications
- reverse
- Voltage
- 230 V
- Protection level
- ATEX
- Other characteristics
- suction
- Flow
3.84 m³/h, 5.76 m³/h
(135.60832 ft³/h, 203.41248 ft³/h)- Power
0.56 kW, 0.75 kW
(0.76 hp, 1.02 hp)
Description
Reversible 2-way service pumps
Descriptive
Technical data:
Reversible pump (2-way)
Orifices: 1’’1/4 M
Particle size: 5 millimetres
Maximum suction lift: 6 metres
Type of impeller: NBR
Current: 5
Rotation speed: 900 rpm (JEP114-900-NBR), 1400 rpm (JEP114-1400-NBR)
Max. viscosity: 1500 cPo (JEP114-900-NBR), 500 cPo (JEP114-1400-NBR)
Specifications and advantages:
Reversible 2-way service pump
Characteristics
Fluid - Diesel, Oil, Food liquids, Chemical liquids, Cosmetic liquids, Pharmaceutical liquids, Wine
Technology - Flexible impeller
ATEX - No
Pump - Bare
Orifice - 1’’1/4 M
Materials - Stainless steel
Mechanism - NBR impelle
