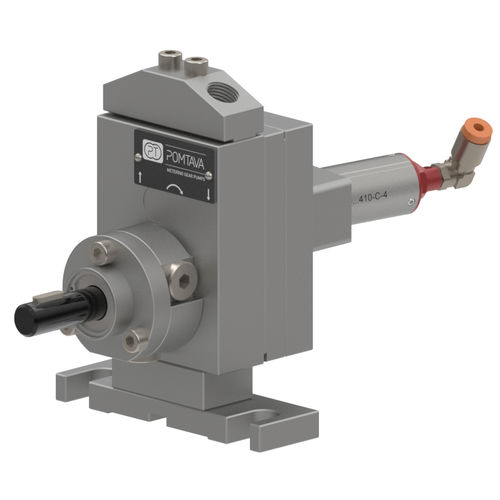

Gear pump 2610-4-2for adhesivesfor resinfor polyurethane
Add to favorites
Compare this product
Characteristics
- Fluid
- for adhesives, for resin, for polyurethane, for epoxy
- Technology
- gear
- Mobility
- stationary
- Domain
- industrial
- Applications
- metering
- Flow
Max.: 2 l/min
(0.52834 us gal/min)Min.: 0.1 l/min
(0.02642 us gal/min)- Pressure
100 bar
(1,450.377 psi)- Fluid temperature
135 °C
(275 °F)
Description
Multicomponents
Specification(s) : I/O on the body, bypass adaptable
Sealing : Lip seals and liquid barrier (16KA)
Rotation speed : From 10 to 200 min-1, depending on the product involved
Standard rotation : Clockwise rotation (A)
Output pressure : Max. 100 bars (10 cc/rev = max. 50 bars)
Input/Output : 2 holes Ø 6mm on the body of the pump. Delivered with connectingblock G1/4
Drive shaft diameter : Ø 12mm with a 4mm key
Drive shaft height : H=51mm
