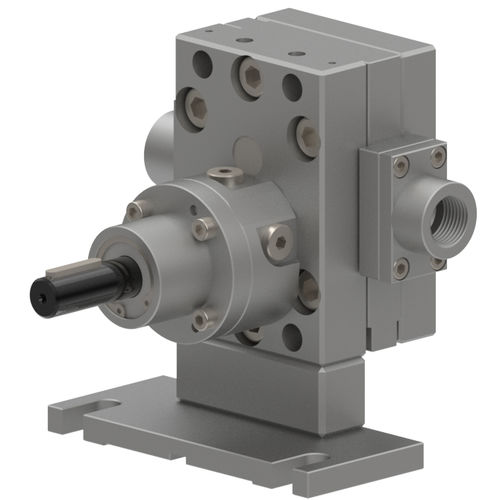

Gear pump 3610-3-1for adhesivesfor resinfor polyurethane
Add to favorites
Compare this product
Characteristics
- Fluid
- for adhesives, for resin, for polyurethane, for epoxy
- Technology
- gear
- Mobility
- stationary
- Domain
- industrial
- Applications
- metering, high-precision
- Other characteristics
- in-line
- Flow
Min.: 0.22 l/min
(0.05812 us gal/min)Max.: 4.4 l/min
(1.16236 us gal/min)- Pressure
100 bar
(1,450.377 psi)- Fluid temperature
135 °C
(275 °F)
Description
Multicomponents
Specification(s) : Inline (I/O on the middle plate)
Sealing : Lip seals and liquid barrier (36EA)
Rotation speed : From 10 to 200 min-1, depending on the product involved
Standard rotation : Clockwise rotation (A)
Output pressure : Max. 100 bars (22 cc/rev = max. 50 bars)
Input/Output : On the center plate, G1/4 (6.0cc/rev), G1/2 (10 + 16cc/rev), G3/4 (22cc/rev)
Drive shaft diameter : Ø 16mm with a 5mm key
Drive shaft height : H=79mm
