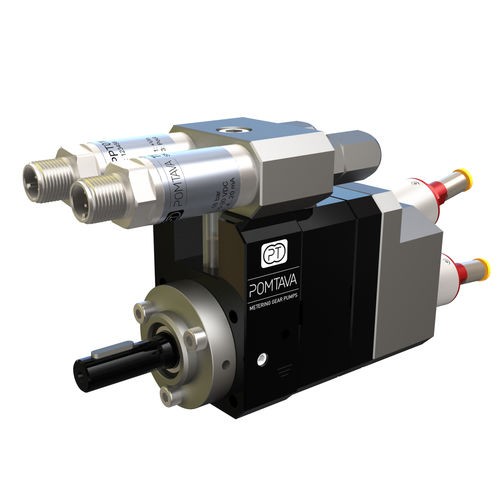

Gear pump RPPT

paintfor automotive applicationsmetering

Application(s) : Paints Specification(s) : Light weight gear pump / Robot arm design / Shaft flushing technology Fast and efficient flushing This very high precision metering gear pump meets all the highest requirements in the worldwide painting industry. Its «dead zones free» internal design allows a prefect color change in a minimum time span and a minimum flushing medium consumption. Flushing is done thanks a integrated bypass block with a shaft flushing medium injection, piloted by a second valve. Light, strong and robust All parts in contact with the product are made in tempered stainless steel. Other parts are made in light weight metal. A «state of the art» parts finishing in addition to some hightech surface treatments - friction free - increase the pump life span, even with highly abrasive paints. This pump is available in 1.2cc/rev, 3cc/rev, 4.5cc/rev, 6cc/rev and 9cc/rev. Sizes 1.2 and 3cc/rev without flushing channels and valves (for hardeners). Sizes 4.5 to 9cc/rev with bypass and shaft flushing functions.
