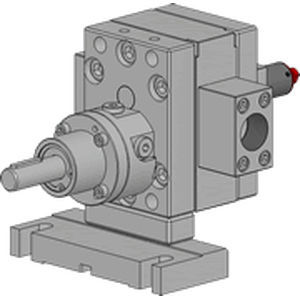

Adhesive pump 3610-3-2for resingearstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- for adhesives, for resin
- Technology
- gear
- Mobility
- stationary
- Domain
- industrial
- Flow
Max.: 4.4 m³/h
(155.38453 ft³/h)Min.: 2.2 m³/h
(77.69227 ft³/h)- Pressure
100 bar
(1,450.377 psi)- Fluid temperature
135 °C
(275 °F)
Description
Multicomponents
Specification(s) : Inline &. flushing ability (with bypass)
Sealing :Lip seals and liquid barrier (36EA)
Rotation speed :From 10 to 200 min-1, depending on the product involved
Standard rotation :Clockwise rotation (A)
Input/Output :On the center plate, G1/4 (6.0cc/rev), G1/2 (10 + 16cc/rev), G3/4 (22cc/rev)
Drive shaft diameter :Ø 16mm with a 5mm key
