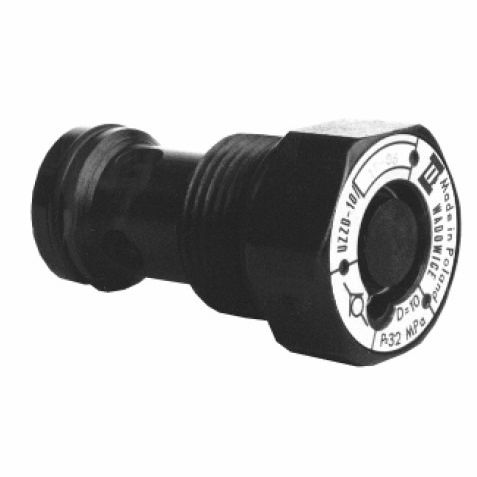

Cartridge check valve UZZD10threadedhydraulic
Add to favorites
Compare this product
Characteristics
- Type
- cartridge
- Body
- threaded
- Applications
- hydraulic
- Pressure
Max.: 3,200,000 Pa
(464.1 psi)Min.: 0 Pa
(0 psi)
Description
The UZZD10 is a check valve designed for applications in hydraulic systems. It can serve as a low-pressure overflow valve to maintain pressure drop at a consistent degree. This is equipped with a sealing using fitted O-rings, available in size 10. It can be installed in any position, operating with up to 32 mpa pressure and a maximum of 60 dm3/min flow.
Catalogs
General Catalogue
1200 Pages
