Power amplifier PA30Bi-H

currentvoltagedifferential

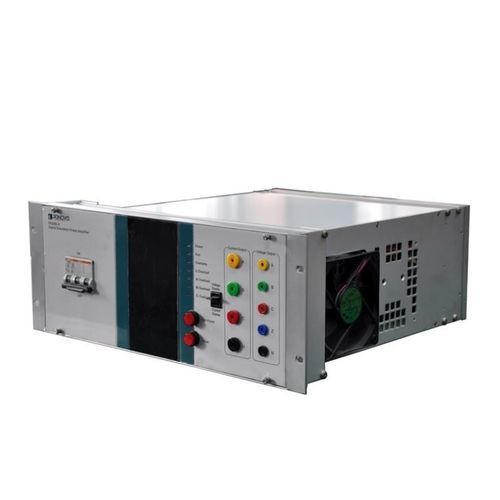

PA30Bi-H is the panel-mounted type power amplifier model which can produce 3-phase current, with maximum RMS phase current of 30A and maximum output power of 450VA, and 4-phase voltage, with maximum RMS phase voltage of 250V and maximum output power of 75VA. While conducting hardware in the loop simulation, it can be installed in the cabinet together with other amplifier models to consist of complicated simulation system together with RTDS and other equipment for the HIL or PHIL application. Max. Output power 450VA(30A output) Input signal 0~7V RMS(± 10Vpek) Current Accuracy 0.2%(0.5A-30A) Current Typical Accuracy < 0.1% Differential input impedance 20k ohm Gain 4A/V Harmonic Distortion Ratio ≤ 0.2% Linearity ≤0 .2% Phase accuracy 0.2° Step response < 20us Input/output delay < 2 0us Max. Output power 75VA(250V output) Input signal 0~7V RMS(± 10Vpek) Voltage Accuracy 0.2%(5V-250V) Voltage Typical Accuracy < 0.1%
