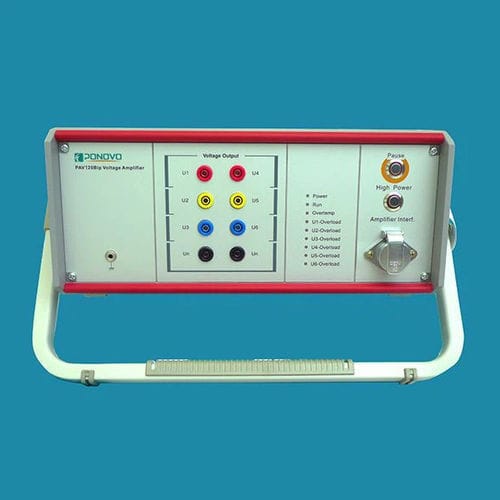

Power amplifier PAV120Bip

voltagedifferentiallinear

PAV120Bip is the portable type power amplifier which is specially designed for R&D of power system simulation. It is with linear type amplifier design so that it could be adapted to simulation experiment which may include various capacitive and inductive load. There are 6-phase voltage outputs with max. 120VRms per phase and max. output power 60VA. Voltage 6×0 ~ 120V RMS Max. Output power >60VA(120V output) Input signal 0~5V RMS(±7.07/16Vpek) Voltage Accuracy <0.1%(5V-120V) Voltage Typical Accuracy < 0.05% Differential input impedance 20k ohm Gain 25V/V Harmonic Distortion Ratio ≤0.1% Linearity ≤0.1% Phase accuracy 0.2° Frequency range DC-5kHz±1dB Step response < 20us Input/output delay < 20us Power supply single phase 110V or 220V AC Chassis 3U
