Power amplifier PAV800

voltagemeasuringprecision

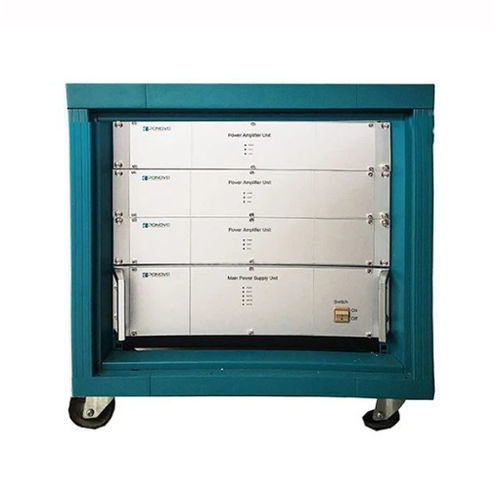

PAV800 Four-Quadrant Power Amplifier is equipped with feature of high voltage (AC 240V), high precision, high power, supporting source mode and sink mode etc. It can meet different application on PHIL application user. PAV800 co-work with different simulators as to build a PHIL (Power Hardware in Loop) simulation. It can easily, fast and efficiently build a variety of simulating and testing application scenarios, including power systems, new energy, electric vehicles and charging facilities, Micro-grid, distributed energy, rail transit, industrial robots, and aviation etc. PAV800 is the three-phase system including 3-phase power amplifier units and 1 power supply unit. When 3-phase 220V is output, the maximum load current can be up to 4A/phase, 880VA power output, which can meet the user's power supply for 220V. PAV800 adopts 3-phase voltage output and 4-Quadrant design principle which could be used in source mode to drive active load, reactive load, capacitive load, inductive load, etc. Also, PAV800 could be used for sink mode to do power absorption to finalize the PHIL simulation together with simulator and other physical equipment.
