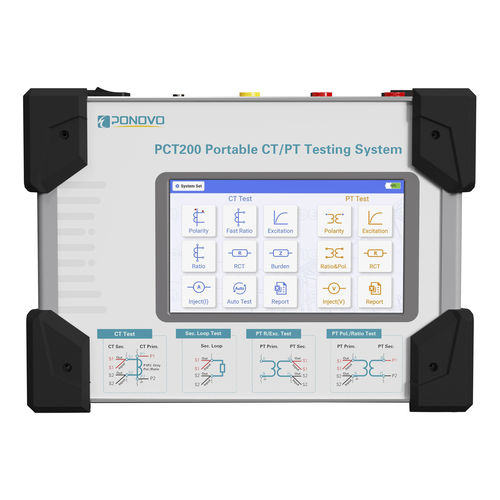

Current testing device PCT200AX

voltageresistanceelectric

PCT200AX Portable CT/PT Testing System (current transformer and voltage transformer analyzer)-Battery Supply Type is a test equipment specially designed for current transformer and voltage transformer characteristic test. Compared with PCT200X, the accuracy of PCT200AX is higher. The test set can finalize various testing functions and support IEC, IEEE and IS standards. With built-in testing software in its local 7-inch touch screen, all test items can be completed automatically after pressing the Run key and generating Excel and PDF reports. The built-in battery can complete a day's duty of testing after being fully charged. It suits the testing required in research institutes, labs, manufacturers, power utilities, power supply and debugging companies, etc. Product Features • With built-in battery can complete a day's duty of testing after being fully charged. • Can test M/P/TP/PS/PX/PXR type, bushing and GIS type CT. • Ratio check up to 50000:1. • Knee point/Excitation Test check up to 45000V. • 7-inch built-in touch screen, all test items can be completed automatically after press Run key. • Test results saved in Excel and PDF format, and CT test result can be evaluated automatically. • More than 10,000 reports can be saved in its local storage, and support readback of stored data. • Standards: IEC60044-1/6, IEC61869-2, ANSI/IEEE C57.13, IS2705 • Guess nameplate function • Support control through mobile phone and tablet • Sliding operation to switch parameters and test pages • Weight: 4kg
