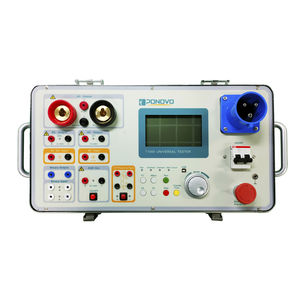

Single-phase relay test set T200A

portableautomatic

T200A Single Phase Test Set is the best universal test system for engineers who need to do all single-phase relay testing and other basic primary testing. All testing could be done by T200A itself, no need external meters to assist. In this way, the complicated wiring shall be avoided, which helps engineers save a lot of time in the field testing. It is integrated design with local control panel with many test functions that make testing more efficient. All test result shall be presented in the easy-to-ready local display screen. T200A support all single-phase relay testing, such as directional, differential, distance, overcurrent, synchronization relay, thermal relays, etc. Meanwhile, automatic reclosing devices could be tested easily as well. T200A's unique feature, output 250Aac continuously for 120 seconds, could be used for testing motor overload relay easily. Also, it could automatically set the change of frequency in its local software and do automatic testing for frequency relay, no need any manual operation. Also, T200A is equipped with other filed test functions, such as CT ratio test, polarity test, secondary impedance test, winding resistance test, injection function, etc. Besides the local control software, there's communication interface on T200A so that it could be connected with PC to use its PC report tool software, in which engineers shall be able to manage the testing reports on PC.
