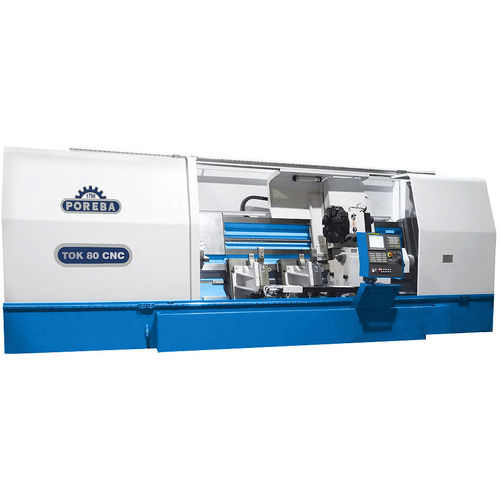

Large workpiece turning center TOK seriesCNCinclined bed12 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Structure
- inclined bed
- Number of tool stations
- 12 tools
- Applications
- for shaft machining, for large workpieces
- Associated function
- milling, drilling
- Diameter
800 mm, 1,000 mm
(31.5 in, 39.37 in)- Spindle speed
Max.: 800 rpm
(5,026.548 rad.min-1)Min.: 4 rpm
(25.133 rad.min-1)- Axe X
1,000 mm, 2,000 mm, 3,000 mm, 4,000 mm
(39 in, 79 in, 118 in, 157 in)- Axe Z
410 mm, 510 mm
(16 in, 20 in)- Rapids on X
5,000 mm/min
(3 in/s)- Rapids on Z
5,000 mm/min
(3 in/s)- Nominal power
55 kW
(74.8 hp)- Overall lenght
5,500 mm, 6,850 mm, 8,050 mm, 9,900 mm
(217 in, 270 in, 317 in, 390 in)- Overall width
2,450 mm
(96 in)- Overall height
2,950 mm
(116 in)- Weight
15,500 kg, 16,200 kg
(34,172 lb, 35,715 lb)
Description
In their basic version the TOK series (TOK 80 / 100) horizontal slant-bed centre lathes – thanks to the innovative mechanical solutions and the advanced control systems – are the multi-purpose lathes that guarantee productive rough and finish machining.
The TOK series lathes are designed for workpiece machining in the range of turning in accordance with their specifications, especially for machining of large-size shafts.
When delivered with special equipment they can operate as horizontal machining centres with turning, drilling and milling capabilities. They can be equipped with an automatic turret, tool attachments, tool and workpiece measuring systems, controlled C axis, workpiece steady rests.
CONTROL SYSTEM
The application of the state-of-the-art CNC system allows for automatic, precise and productive workpiece machining according to a program.
