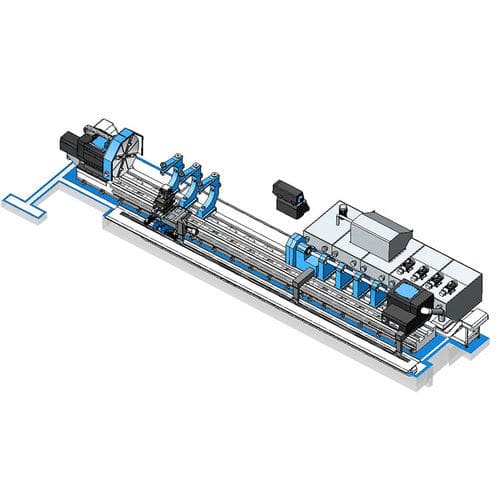

Conventional lathe WT2 series horizontal2-axisfor deep drilling
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Applications
- for deep drilling
- Associated function
- boring
- Diameter
Min.: 120 mm
(4.72 in)Max.: 800 mm
(31.5 in)- Spindle speed
Min.: 0.5 rpm
(3.142 rad.min-1)Max.: 315 rpm
(1,979.203 rad.min-1)- Maximum part length
8,000 mm
(315 in)- Rapids on X
4,000 mm/min
(3 in/s)- Rapids on Z
6,000 mm/min
(4 in/s)- Nominal power
75 kW, 100 kW
(102 hp, 136 hp)- Overall width
5,800 mm
(228 in)- Overall height
2,300 mm
(91 in)- Weight
33,000 kg, 34,000 kg
(72,753 lb, 74,957 lb)
Description
The WT2 series (WT2 160 / WT2 200) horizontal deep drilling lathes are the machine tools based on the TCF series horizontal lathes equipped with devices that facilitate drilling and machining of deep holes with the use of highly-efficient, specialized tools.
The WT2 series horizontal deep drilling lathes are designed for deep hole drilling, external and internal turning, reaming and contour thread cutting.
CONTROL SYSTEM
The application of the state-of-the-art CNC system allows for automatic, precise and efficient workpiece machining according to a program.
