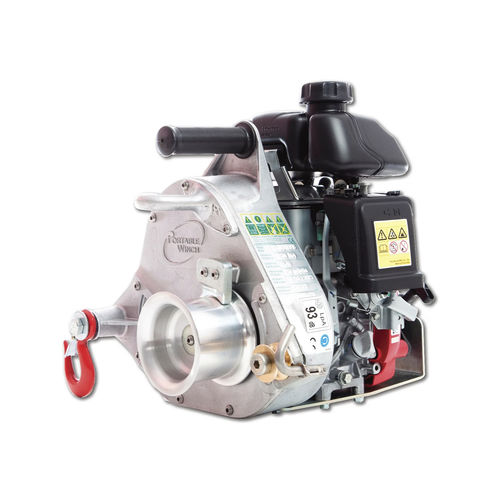

High-speed capstan winch PCW5000-HS
with combustion enginepullingportable

High-speed capstan winch - PCW5000-HS - PORTABLE WINCH CO. - with combustion engine / pulling / portable
High-speed capstan winch - PCW5000-HS - PORTABLE WINCH CO. - with combustion engine / pulling / portable
High-speed capstan winch - PCW5000-HS - PORTABLE WINCH CO. - with combustion engine / pulling / portable - image - 2
High-speed capstan winch - PCW5000-HS - PORTABLE WINCH CO. - with combustion engine / pulling / portable - image - 3
High-speed capstan winch - PCW5000-HS - PORTABLE WINCH CO. - with combustion engine / pulling / portable - image - 4
High-speed capstan winch - PCW5000-HS - PORTABLE WINCH CO. - with combustion engine / pulling / portable - image - 5
High-speed capstan winch - PCW5000-HS - PORTABLE WINCH CO. - with combustion engine / pulling / portable - image - 6
Add to favorites
Compare this product


Characteristics

Operation
with combustion engine
Application
pulling
Other characteristics
high-speed, portable
Capacity

350 kg, 700 kg
(771.6 lb, 1,543.2 lb)

Speed

36 m/min

Cable diameter

12 mm
(0.47 in)

Motor power

1.6 kW
(2.18 hp)

Weight

16 kg
(35.274 lb)

Description

The High-Speed The PCW5000-HS is the fastest Portable Winch in the line-up. It is therefore ideal for jobs requiring more speed than power, such as pulling cable or installing fiber optics. Design Using the same successful design as the PCW5000, the PCW5000-HS is built with a gearbox optimized for speed and comes with 85 mm capstan drum as standard. So, at 36 meters per minute, it pulls a load three times faster than its predecessor, making it perfectly suited to pulling smaller loads over a long distance. In addition, the winch's capstan drum concept allows users to pull loads over an unlimited length of rope, without loss of power, in a simple, effective and safe way. Performance The PCW5000-HS develops a pulling force of 350 kg, without mechanical advantage. By adding a pulley system, you can go up to five times (5x) the pulling force. That means, with two double pulleys, you could pull up to 1,750 kg!
