Lifting capstan winch PCH1000
with combustion enginepulling

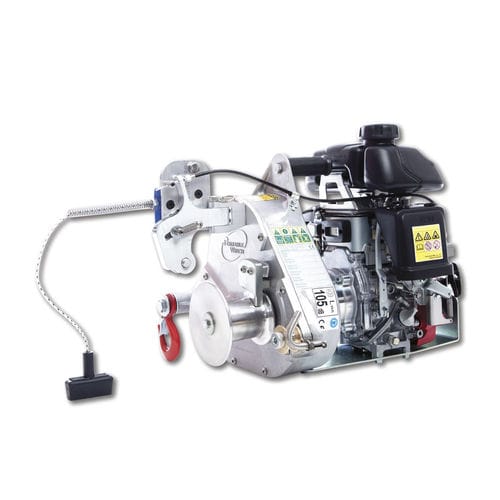

Lifting capstan winch - PCH1000 - PORTABLE WINCH CO. - with combustion engine / pulling
Lifting capstan winch - PCH1000 - PORTABLE WINCH CO. - with combustion engine / pulling
Lifting capstan winch - PCH1000 - PORTABLE WINCH CO. - with combustion engine / pulling - image - 2
Lifting capstan winch - PCH1000 - PORTABLE WINCH CO. - with combustion engine / pulling - image - 3
Lifting capstan winch - PCH1000 - PORTABLE WINCH CO. - with combustion engine / pulling - image - 4
Lifting capstan winch - PCH1000 - PORTABLE WINCH CO. - with combustion engine / pulling - image - 5
Lifting capstan winch - PCH1000 - PORTABLE WINCH CO. - with combustion engine / pulling - image - 6
Add to favorites
Compare this product


Characteristics

Operation
with combustion engine
Application
pulling, lifting
Capacity

250 kg, 775 kg, 1,550 kg
(551.2 lb, 1,708.6 lb, 3,417.2 lb)

Speed

12 m/min

Cable diameter

12 mm
(0.47 in)

Motor power

1.6 kW
(2.18 hp)

Weight

19 kg
(41.888 lb)

Description

Lifting in complete safety Specifically designed for the lifting needs of the industrial sector, the PCH1000 features the Progressive Capture System (PCS), which is essential for lifting, lowering and holding loads safely. Whether for telecommunications structures assembly, for lifting various equipment on a site or simply for pulling loads, the PCH1000 is versatile and safe. In addition, a wide variety of anchoring systems are available so you can easily do your setup. Design Located between the engine and the gearbox, the clutch system ensures that the capstan drum does not rotate when the engine idles. Once the rope is inserted into the PCS, the operator activates the clutch and initiates the movement simply by pulling on the rope horizontally. The rope grabbing system prevents the rope from slipping on the drum and holds the load when the rope is released. The winch can also be used to lower a load by disengaging the Progressive Capture System. To do this, the operator should simply pull the handle of the grabbing system cord and control the main rope during the descent. Performance Equipped with the 4-stroke GXH50 Honda engine, the PCH1000 develops a pulling force of 775 kg and offers a lifting capacity of 250 kg in a single line setup. Of course, a block and tackle system will allow you to increase its capacity!
