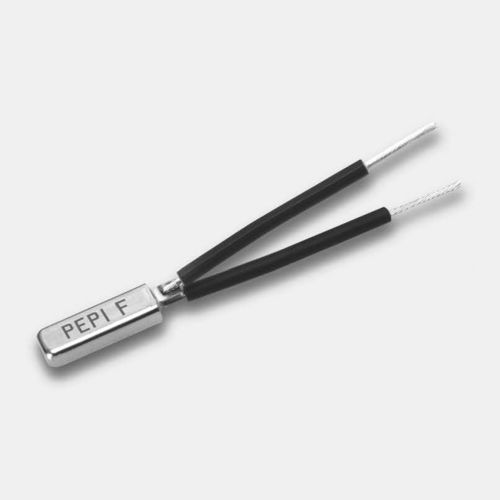

Miniature thermal protector F series

snap-action

A small, versatile snap-action thermal protector used mainly in motor, transformer, and lighting applications with 120, 240, or 277 VAC loads. Available with various bimetallic elements to match the circuit-breaker characteristics of the device to the application. Features ________________________________________ •Conductive bimetal construction; the bimetallic element carries the circuit current for maximum sensitivity under short circuit conditions. •Snap-action device; quick make/quick break switching action. •Temperature differential between opening and closing can vary from 10° C to 70° C depending upon the no-load calibration temperature. •Conductive bimetal construction; the bimetallic element carries the circuit current for maximum sensitivity under short circuit conditions. •Snap-action device; quick make/quick break switching action. Contact Ratings ________________________________________ •12 amps 120 VAC inductive •8 amps 240 VAC inductive •VDE certified Calibration Range ________________________________________ •Available with nominal calibration temperatures from 60°C to 150°C.
