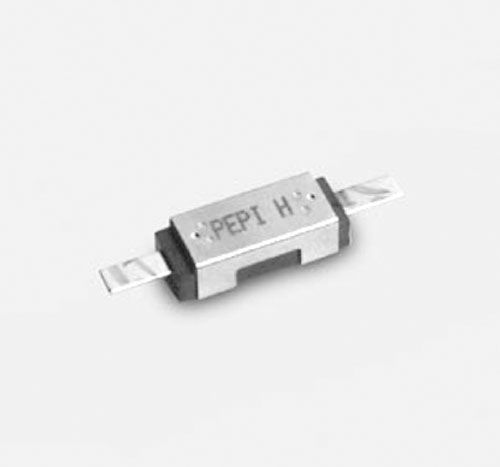

Miniature thermal protector H

snap-action

A Snap Action Thermal Protector specifically designed for DC voltage applications. This miniature device operates as a high limit single operation (non-resettable) type control. Has the functionality of a thermal fuse but can be tested for operation to insure proper function. Features ________________________________________ •Snap action device; quick make/quick break switching action. •Single operation type device. The reset temperature is less than -35°C. This prevents the thermostat from resetting under normal operating conditions. •Unique construction provides for fast thermal response. •Phenolic resin case isolates the device from the electrical circuit and is suitable for use in high temperature applications. •Can be mounted directly on a heated surface. •Preset calibration temperature, not adjustable in the field. •Opposite end termination allows for flexibility of installation. •Factory Installed lead wires or terminals available -Consult Factory. Contact Ratings ________________________________________ •4 amps/36V DC (resistive) •CUL, TUV, VDE Calibration Range ________________________________________ •Available with nominal calibration temperatures from 160°C to 220°C.
