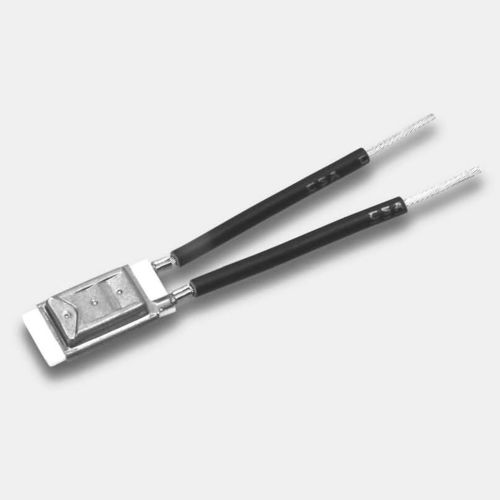

Miniature thermal protector J series

snap-action

A snap-action thermal protector excellent for use in motor, transformer, and lighting applications with ratings for 120, 240, and 277 VAC loads. Available with various bimetallic elements to match the current sensitivity of the device to the application. Features ________________________________________ •Conductive bimetal construction; the bimetallic element carries the circuit current for maximum sensitivity under short circuit conditions. •Snap-action device; quick make/quick break switching action. •6 bimetal variations available from the low sensitivity model J(B) to the maximum sensitivity model J(J) •Temperature differential between opening and closing can vary from 10° C to 70° C depending upon the no-load calibration temperature. Tighter differentials may be available upon request. •Preset calibration temperature; not adjustable in the field. •Case electrically alive; insulating sleeving is available. •Available with factory applied lead wires. Contact Ratings ________________________________________ •15 amps 120 VAC inductive •10 amps 240 VAC inductive •10 amps 12 VDC resistive •5 amps 24 VDC resistive •VDE certified Calibration Range ________________________________________ •Available with nominal calibration temperatures from 60°C to 160°C
