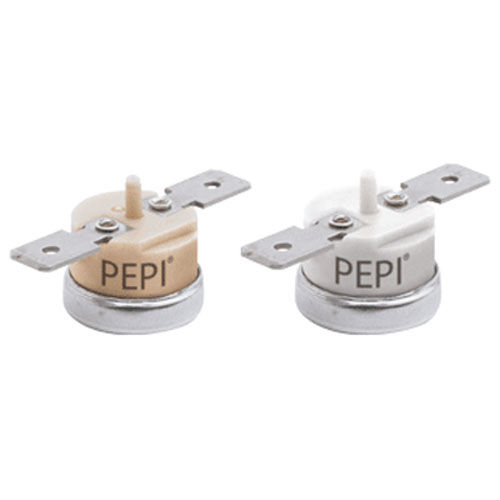

Bimetallic thermostat KB, CB

1/2" disc thermostats with manually activated reset. Quick make/quick break switching action. An electrically isolated bimetal disc is used to either open the circuit current. General ________________________________________ Available with nominal calibration temperatures of -35º C to 200º C. Other temperatures available upon request. Manual Reset ________________________________________ Thermostats must be manually reset once activated. Contact Ratings ________________________________________ Model KB UL: 16 amps 250 VAC, 6,000 cycles VDE: 10 amps 250 VAC 3,000 cycles 16 amps 250 VAC 1,000 cycles Model CB VDE: 16 ampls 250 VAC 10,000 cycles 16 amps 400 VAC 1,000 cycles
