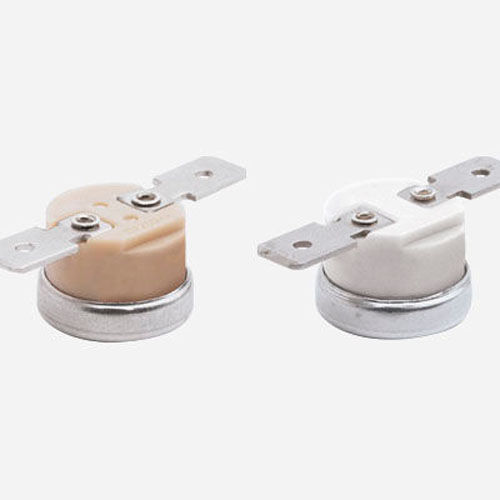

Bimetallic thermostat SO, CSO

1/2" disc self-hold temperature limiting control. In a fault condition, the control opens activating an internal heat source which holds the device in an open condition until the power is removed and the unit is allowed to cool. The control then resets allowing continued operation. General ________________________________________ A snap-action self-hold thermostat for motor and appliance applications. Features ________________________________________ •Snap-action device for quick break switching action •Internal heat source provides a low profile design for better fit into tight spaces. •Self-hold functionality available for both 120 VAC and 240 VAC applications. Contact Ratings ________________________________________ Model SO UL: 16 amps 250 VAC 6,000 cycles VDE: 10 amps 250 VAC 3,000 cycles 16 amps 250 VAC 1,000 cycles Model CSO VDE: 16 amps 250 VAC 10,000 cycles Calibration Range ________________________________________ •Available with nominal calibration temperatures from 40º C to 200º C
