Bimetallic thermostat A, AA

preset

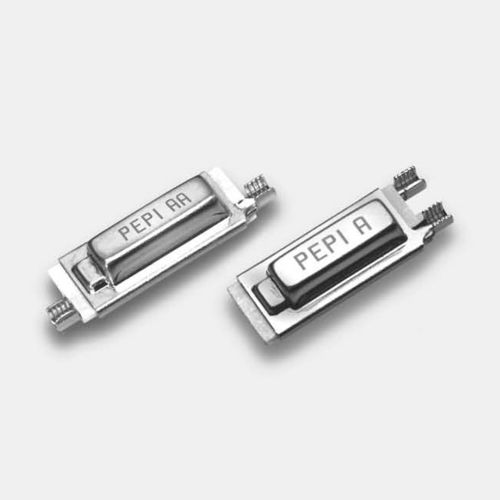

A creep-action thermostat with crimp connections for fast, easy termination. Available in same end (Model A) or opposite (Model AA) termination. Designed for use on low-current 120 VAC loads. Features ________________________________________ •Conductive bimetal construction; the bimetallic element carries the circuit current. •Creep action device; slow make/slow break switching action. •No built-in differential between the opening and closing temperature. •Case electrically alive; insulating sleeving is available. •Preset calibration temperature; not adjustable in the field. •Available with same end termination, Model A; or opposite end termination, Model AA. •Available with factory applied lead wires Contact Ratings ________________________________________ •3 amps 120 VAC resistive •4 amps 120 VAC inductive •2 amps 120 VAC resistive (heating pads) Calibration Range ________________________________________ Available with nominal calibration temperatures from 5°C to 150°C.
