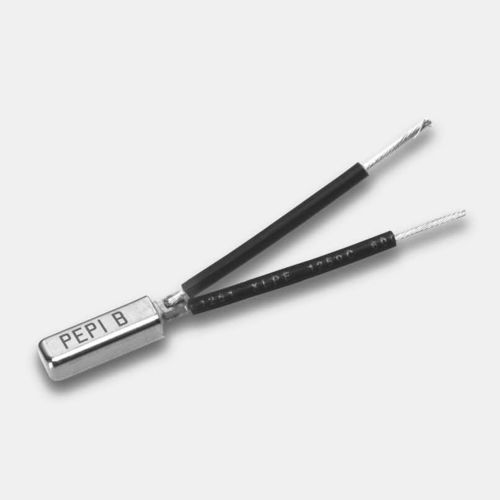

Bimetallic thermostat B

presetprecision

A creep-action thermostat/thermal protector. Shunted type bimetal design allows for higher contact ratings. Equipped with gold diffused contacts for use in low voltage/low current applications. Features ________________________________________ •Shunted bimetal construction; the bimetallic element does not carry the circuit current. •Creep action device; slow make/slow break switching action. •Frictional differential between opening and closing varies from 2° C to 10° C from the opening temperature. •Case electrically alive; insulating sleeving is available. •Preset calibration temperature; not adjustable in the field. •Equipped with gold diffused, fine silver contacts for use in low voltage/low current applications Contact Ratings ________________________________________ •8 amps 120 VAC resistive •6 amps 120 VAC inductive Calibration Range ________________________________________ •Available with nominal calibration temperatures from 5°C to 150°C.
