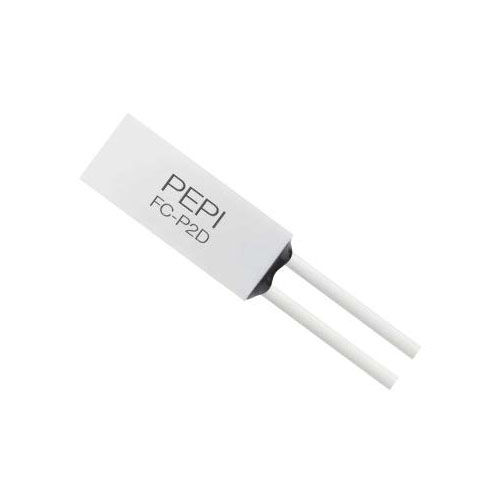

Miniature thermal protector FC-P2D series

Economical snap-action thermal protectors designed for a cost effective solution for protection in motor, transformer, and lighting applications. Plastic case requires no additional insulation materials to isolate the protector from the electrical circuit. Features ________________________________________ •Snap-action design, quick break/quick make switching action. •Compact design with a high switching contact rating. •Conductive bimetal construction: The bimetal carries the circuit current for maximum sensitivity under short circuit conditions. •Heat resistant plastic case. •Preset calibration temperature, not adjustable in the field. •Available in a low and high bimetal resistance for optimum current and temperature sensitivity. •Suitable for vacuum impregnation processes Contact Ratings ________________________________________ •12 amps 125 VAC inductive •8 amps 250 VAC inductive •12 amps 24 VDC inductive Calibration Range ________________________________________ •Available with nominal temperatures from 50°C to 130°C in increments of 5°C. •Standard calibration tolerance is ± 5°C.
