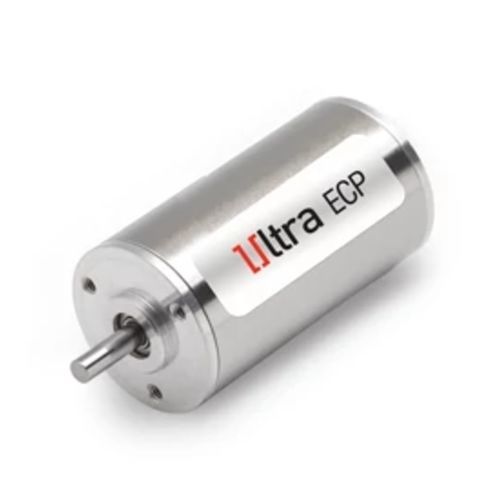

DC motor 22ECP35 Ultra EC

EC24 Valuminum

The ECP line of miniature motors are ultra cost optimized without compromising on premium performance. The two pole 22ECP35 brushless motor provides high continuous and peak torques and 100% more power over similar comparative motors while maintaining smooth operation and long life. With the 22ECP35, you can get the right balance between torque and speed in a compact short length. Even better, is the 22ECP35's adaptability for most applications in the medical & industrial markets, enhancing life and reliability. Motor Highlights •2 pole slotless motor •With or without hall sensors •2 standard lengths available •Right balance of torque and speed •Proprietary high efficiency coil design •Maximized performance/price ratio Customization Available •Connectors •Different coil impedance •Shaft lengths •High speed version (ECS) with damping system Applications •Medical Analyzers •Humanoid Robot •Infusion Systems •Pick & Place •Window Shades •Seat Actuation •Power Hand Tools •Electric Grippers •Miniature pumps •Lab automation •Clinical diagnostic
