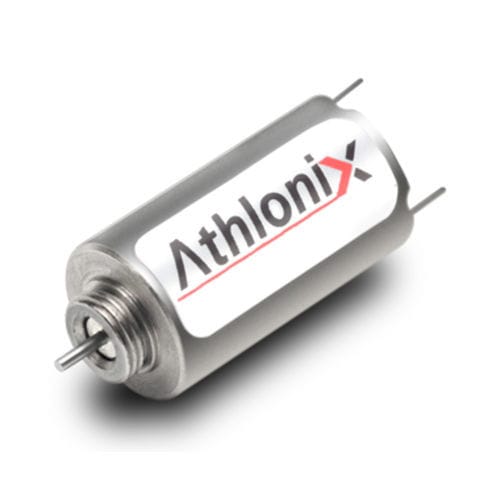

DC motor 10NS61 Athlonix brushed3 Vironless
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 3 V
- Configuration
- ironless, compact
- Applications
- for pump, for robotics
- Other characteristics
- high-power
- Power
0.7 W
(0.001 hp)- Intensity
0.34 A
- Torque
0.0009 Nm
(0.0007 ft.lb)- Rotational speed
10,000 rpm, 10,100 rpm
(62,831.85 rad.min-1, 63,460.17 rad.min-1)- Diameter
10 mm
(0.39 in)- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 100 °C
(212 °F)
Description
With a design combining high power density and precious metal commutation, the 10NS61 can deliver a torque greater than 0.8 mNm continuously in a very compact package.
Product Highlights
• Ironless construction
• Neodymium magnet for high performance
• High power density package
• Precious metal commutation
• Long brush life
• Compact design
• Winding possibilities
Customization Available
• Cable or terminal outputs
• Custom shafts - flats, knurling, diameter, length
• Mechanical integration upon request (housing, front & rear flange, shaft)
• Shaft attachments
Applications
• Insulin Pumps
• Radiation Treatment Therapy
• Miniature Pumps
• Gas Detection and Personal Safety
• Land Surveying
• Humanoid Robot
• Infrared Thermography
Catalogs
Portescap Product Catalog
214 Pages
