High-power motor 22DCP Athlonix
DCbrushed6 V

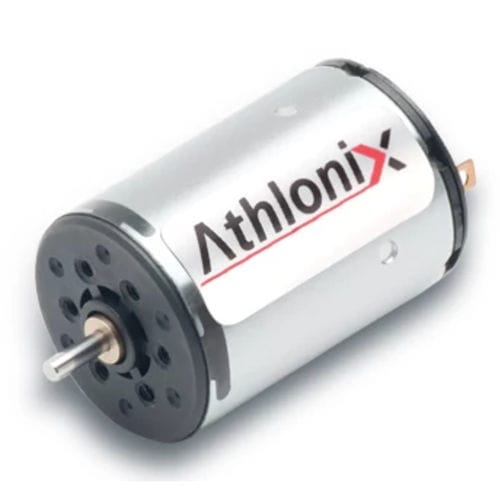

High-power motor - 22DCP Athlonix - Portescap S.A. - DC / brushed / 6 V
High-power motor - 22DCP Athlonix - Portescap S.A. - DC / brushed / 6 V
Add to favorites
Compare this product

Go to the Portescap S.A. website for more information

Characteristics

AC/DC
DC
Type
brushed
Voltage
24 V, 12 V, 48 V, 36 V, 18 V, 15 V, 6 V, 3 V, 9 V
Configuration
ironless, compact, miniature
Applications
for pump, for medical equipment, for robotics, for dispensers
Other characteristics
custom, high-power
Power

Max.: 4.5 W
(0.006 hp)

Min.: 2.9 W
(0.004 hp)

Intensity

Max.: 1.13 A

Min.: 0.15 A

Torque

Max.: 0.0065 Nm
(0.0048 ft.lb)

Min.: 0.0059 Nm
(0.0044 ft.lb)

Rotational speed

10,000 rpm
(62,831.85 rad.min-1)

Diameter

22 mm
(0.87 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)

Description

The next generation of Athlonix motors - the 22DCP Athlonix brush dc motors feature an Alnico magnet inside. These miniature motors can deliver a torque up to 6.5 mNm and excellent price-to-performance ratio. Product Highlights • Ironless construction • Alnico magnet for high performance • Precious metal commutation • Long brush life • Compact design • Winding possibilities • REE windings to reduce electro erosion Customization Available • Cable or terminal outputs • Coil modifications - resistance and inductance • Custom shafts - flats, knurling, diameter, length • Fixation holes • Sleeve or ball bearings Applications • Dosing and Dispensing Systems • Clinical Diagnostics • Lab Automation • Miniature Pumps • Humanoid Robot • Rotary Tattoo Machine Motors • Automated Watch Winder • Mesotherapy Guns • Dental Hand Tools
