High-torque motor 22DCT Athlonix
DCbrushed6 V

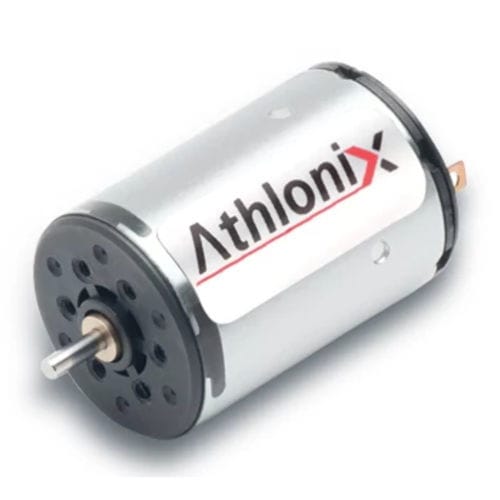

High-torque motor - 22DCT Athlonix - Portescap S.A. - DC / brushed / 6 V
High-torque motor - 22DCT Athlonix - Portescap S.A. - DC / brushed / 6 V
Add to favorites
Compare this product

Go to the Portescap S.A. website for more information

Characteristics

AC/DC
DC
Type
brushed
Voltage
24 V, 12 V, 48 V, 36 V, 18 V, 6 V, 3 V, 9 V
Configuration
ironless, compact, miniature
Applications
for pump, for medical equipment, for robotics, for dispensers
Other characteristics
high-torque
Power

Max.: 9 W
(0.012 hp)

Min.: 3.7 W
(0.005 hp)

Intensity

Max.: 1.96 A

Min.: 0.16 A

Torque

Max.: 0.0127 Nm
(0.0094 ft.lb)

Min.: 0.0102 Nm
(0.0075 ft.lb)

Rotational speed

10,000 rpm
(62,831.85 rad.min-1)

Diameter

22 mm
(0.87 in)

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -30 °C
(-22 °F)

Description

The newest addition to the Athlonix range of DCT motors, the 22DCT, features a Neo magnet. The 22DCT Athlonix miniature dc motor with graphite commutation can deliver torque up to 13.29 mNm and provides an optimal price-performance solution. Product Highlights • Ironless construction • Neodymium magnet for high performance • Graphite commutation • Long brush life • Compact design • Winding possibilities • REE windings to reduce electro erosion Customization Available • Cable or terminal outputs • Coil modifications - resistance and inductance • Custom shafts - flats, knurling, diameter, length • Fixation holes • Sleeve or ball bearings Applications • Dosing and Dispensing Systems • Clinical Diagnostics • Miniature Pumps • Lab Automation • Humanoid Robot • Rotary Tattoo Machine Motors • Automated Watch Winder • Dental Hand Tools
