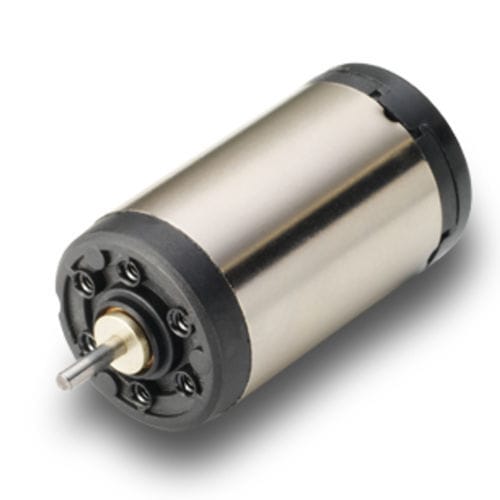

High-efficiency motor 16G88 series
DCbrushed12 V

high-efficiency motor
high-efficiency motor
Add to favorites
Compare this product

Go to the Portescap S.A. website for more information

Characteristics

AC/DC
DC
Type
brushed
Voltage
12 V, 15 V, 32V, 3 V, 9 V, 8 V
Configuration
permanent magnet, coreless, ironless, compact
Applications
for pump, for robotics
Other characteristics
high-efficiency, high-power
Power

2.5 W, 4.1 W, 4.2 W, 4.6 W
(0.003 hp, 0.006 hp, 0.006 hp, 0.006 hp)

Intensity

Max.: 2.2 A

Min.: 0.13 A

Torque

0.0048 Nm, 0.0053 Nm, 0.0054 Nm, 0.0055 Nm, 0.0058 Nm
(0.0035 ft.lb, 0.0039 ft.lb, 0.004 ft.lb, 0.0041 ft.lb, 0.0043 ft.lb)

Rotational speed

10,000 rpm
(62,831.85 rad.min-1)

Diameter

16 mm
(0.63 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)

Description

With a design combining high power density and precious metal commutation, this coreless DC motor can deliver a torque greater than 5 mNm continuously, reaching up to 80% efficiency while maintaining a long lifetime. Product Highlights > Ironless construction > Neodymium magnet for high performance > High power density package > Precious metal commutation > Long brush life > Compact design > Winding possibilities > REE windings to reduce electro erosion Customization Available > Cable or terminal outputs > Coil modifications - resistance and inductance > Custom shafts - flats, knurling, diameter, length > EMI filter in motor end caps > Sleeve or ball bearings Applications > Lab Automation > Miniature Pumps > Humanoid Robot
