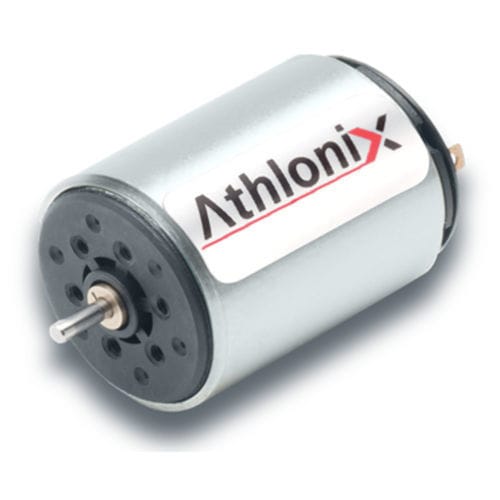

High-power motor 24DCT Athlonix
DCbrushed6 V

High-power motor - 24DCT Athlonix - Portescap S.A. - DC / brushed / 6 V
High-power motor - 24DCT Athlonix - Portescap S.A. - DC / brushed / 6 V
Add to favorites
Compare this product

Go to the Portescap S.A. website for more information

Characteristics

AC/DC
DC
Type
brushed
Voltage
24 V, 12 V, 48 V, 36 V, 18 V, 6 V, 3 V, 9 V
Configuration
ironless, compact, miniature
Applications
for pump, for medical equipment, for robotics, for dispensers
Other characteristics
custom, high-power
Power

Max.: 9.4 W
(0.013 hp)

Min.: 5.3 W
(0.007 hp)

Intensity

Max.: 2.63 A

Min.: 0.23 A

Torque

Max.: 0.015 Nm
(0.0111 ft.lb)

Min.: 0.0129 Nm
(0.0095 ft.lb)

Rotational speed

10,000 rpm
(62,831.85 rad.min-1)

Diameter

24 mm
(0.94 in)

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -30 °C
(-22 °F)

Description

The new generation 24mm Athlonix motors feature a Neo magnet inside. The 24DCT miniature dc motor can deliver a torque up to 14.97mNm and optimal price-performance options. Product Highlights • Ironless construction • Neodymium magnet for high performance • Precious metal commutation • Long brush life • Compact design • Winding possibilities • REE windings to reduce electro erosion Customization Available • Cable or terminal outputs • Coil modifications - resistance and inductance • Custom shafts - flats, knurling, diameter, length • Fixation holes • Sleeve or ball bearings Applications • Dosing and Dispensing Systems • Clinical Diagnostics • Miniature Pumps • Lab Automation • Humanoid Robot • Rotary Tattoo Machine Motors • Mesotherapy Guns • Automated Watch Winder • Dental Hand Tools
