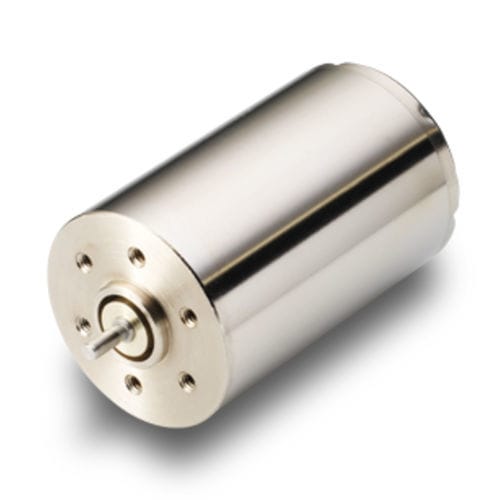

High-torque motor 26N58 seriesDCbrushed6 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 24 V, 12 V, 15 V, 6 V
- Configuration
- permanent magnet, coreless, ironless, compact
- Applications
- for pump, for medical equipment, for dispensers
- Other characteristics
- custom, high-torque
- Power
4.6 W, 5.2 W, 6 W, 6.2 W
(0.006 hp, 0.007 hp, 0.008 hp, 0.008 hp)- Intensity
0.41 A, 0.6 A, 0.74 A, 1.47 A
- Torque
0.0133 Nm, 0.0151 Nm, 0.0173 Nm, 0.0179 Nm
(0.0098 ft.lb, 0.0111 ft.lb, 0.0128 ft.lb, 0.0132 ft.lb)- Rotational speed
8,000 rpm
(50,265.48 rad.min-1)- Diameter
26 mm
(1.02 in)- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 85 °C
(185 °F)
Description
With a cost efficient design featuring an Alnico magnet, this motor can deliver a torque up to 15 mNm continuously. The 26N58 brush DC motor can reach up to 80% efficiency while maintaining a long lifetime.
Product Highlights
> Ironless construction
> Alnico magnet for high performance
> Precious metal commutation
> Long brush life
> Compact design
> Winding possibilities
> REE windings to reduce electro erosion
Customization Available
> Cable or terminal outputs
> Coil modifications - resistance and inductance
> Custom shafts - flats, knurling, diameter, length
> Fixation holes
> Sleeve or ball bearings
Applications
> Dosing and Dispensing Systems
> Clinical Diagnostics
> Lab Automation
> Miniature Pumps
