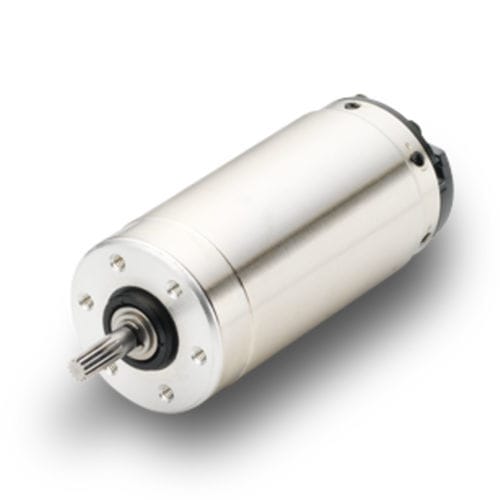

DC motor 28DT12 series
brushed12 V24 V

DC motor
DC motor
Add to favorites
Compare this product

Go to the Portescap S.A. website for more information

Characteristics

AC/DC
DC
Type
brushed
Voltage
24 V, 12 V, 15 V, 28V
Configuration
permanent magnet, coreless, ironless
Applications
for conveyors, for power tools
Power

24 W, 27 W
(0.033 hp, 0.037 hp)

Intensity

1.1 A, 1.4 A, 2 A, 2.5 A

Torque

0.036 Nm, 0.037 Nm, 0.041 Nm
(0.0266 ft.lb, 0.0273 ft.lb, 0.0302 ft.lb)

Rotational speed

9,000 rpm
(56,548.67 rad.min-1)

Diameter

28 mm
(1.1 in)

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -30 °C
(-22 °F)

Description

The 28DT12 brush DC motor is a cost efficient solution for applications requiring acceleration (start/stop) with a long brush life time. Product Highlights > Ironless construction > Alnico magnet for high performance > Graphite/copper commutation > Long brush life > Winding possibilities > Low self heating Customization Available > Cable or terminal outputs > Coil modifications - resistance and inductance > Custom shafts - flats, knurling, diameter, length > Fixation holes > Sleeve or ball bearings Applications > Power Hand Tools > Seat Actuation > Conveyors
