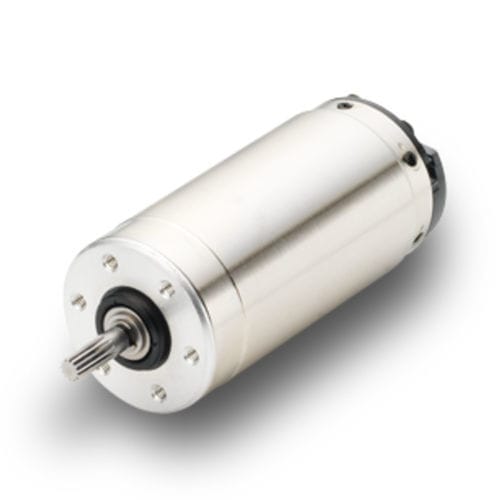

DC motor 28LT12 series
brushed18 V32V

DC motor
DC motor
Add to favorites
Compare this product

Go to the Portescap S.A. website for more information

Characteristics

AC/DC
DC
Type
brushed
Voltage
18 V, 32V
Configuration
permanent magnet, coreless, ironless
Applications
for conveyors, for power tools
Other characteristics
custom
Power

19 W, 20 W
(0.026 hp, 0.027 hp)

Intensity

0.63 A, 1.13 A

Torque

0.023 Nm, 0.024 Nm
(0.017 ft.lb, 0.0177 ft.lb)

Rotational speed

10,000 rpm
(62,831.85 rad.min-1)

Diameter

28 mm
(1.1 in)

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -30 °C
(-22 °F)

Description

The 28LT12 is a cost efficient solution for applications requiring acceleration (start/stop) with a long brush lifetime. Product Highlights > Ironless construction > Alnico magnet for high performance > Graphite/copper commutation > Long brush life > Winding possibilities > Low self heating Customization Available > Cable or terminal outputs > Coil modifications - resistance and inductance > Custom shafts - flats, knurling, diameter, length > Fixation holes > Sleeve or ball bearings Applications > Power Hand Tools > Seat Actuation > Conveyors > Material Handling
