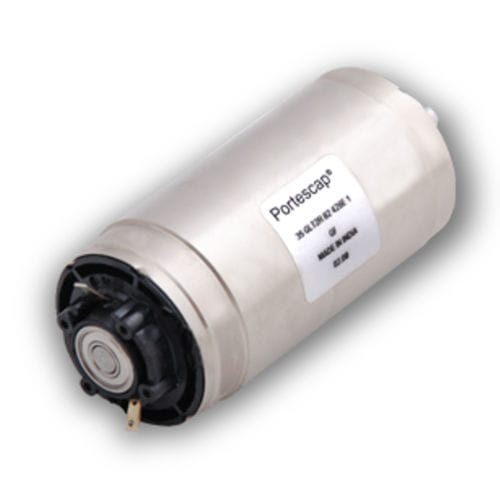

DC motor 35GLT2R82 seriesbrushed24 V48 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 24 V, 48 V, 90 V
- Configuration
- permanent magnet, coreless, ironless, compact
- Applications
- for medical equipment, for conveyors, for power tools
- Other characteristics
- custom, high-power
- Power
122 W, 124 W, 136 W, 142 W, 150 W
(0.166 hp, 0.169 hp, 0.185 hp, 0.193 hp, 0.204 hp)- Intensity
2.1 A, 2.2 A, 3.5 A, 4.2 A, 10.5 A
- Torque
0.13 Nm, 0.132 Nm, 0.142 Nm, 0.15 Nm, 0.16 Nm
(0.0959 ft.lb, 0.0974 ft.lb, 0.1047 ft.lb, 0.1106 ft.lb, 0.118 ft.lb)- Rotational speed
10,000 rpm
(62,831.85 rad.min-1)- Diameter
35 mm
(1.38 in)- Operating temperature
Max.: 85 °C
(185 °F)Min.: -30 °C
(-22 °F)
Description
The 35GLT2R82 offers high power density is combined with graphite/copper commutation to achieve high acceleration with a long brush lifetime. This brush DC motor can perform up to 150 mNm continuously and reach up to 90% efficiency.
Product Highlights
> Ironless construction
> Neodymium magnet for high performance
> High power density package
> Graphite/copper commutation
> Long brush life
> Compact design
> Winding possibilities
> High acceleration
> Low self heating
Customization Available
> Cable or terminal outputs
> Coil modifications - resistance and inductance
> Custom shafts - flats, knurling, diameter, length
> Fixation holes
> Sleeve or ball bearings
Applications
> Clinical Diagnostics
> Power Hand Tools
> Seat Actuation
> Conveyors
