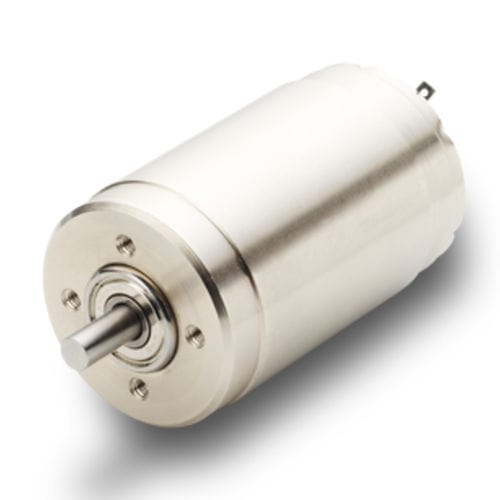

High-efficiency motor 35NT2R32 series
DCbrushed9 V

high-efficiency motor
high-efficiency motor
Add to favorites
Compare this product

Go to the Portescap S.A. website for more information

Characteristics

AC/DC
DC
Type
brushed
Voltage
24 V, 15 V, 9 V
Configuration
permanent magnet, coreless, ironless
Applications
for medical equipment, for power tools, conveyor
Other characteristics
custom, high-efficiency
Power

33 W, 35 W
(0.045 hp, 0.048 hp)

Intensity

1.18 A, 1.75 A, 3.3 A

Torque

0.052 Nm, 0.054 Nm, 0.056 Nm
(0.0384 ft.lb, 0.0398 ft.lb, 0.0413 ft.lb)

Rotational speed

9,000 rpm
(56,548.67 rad.min-1)

Diameter

35 mm
(1.38 in)

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -30 °C
(-22 °F)

Description

The 35NT2R32 brush DC motor is a cost efficient solution for applications requiring acceleration (start/stop) with a long brush lifetime. Product Highlights > Ironless construction > Alnico magnet for high performance > Graphite/copper commutation > Long brush life > Winding possibilities > Low self heating Customization Available > Cable or terminal outputs > Coil modifications - resistance and inductance > Custom shafts - flats, knurling, diameter, length > Fixation holes > Sleeve or ball bearings Applications > Clinical Diagnostics > Power Hand Tools > Seat Actuation > Conveyors
